Array-DC-Last 37xx

ARRAY ELECTRONIC

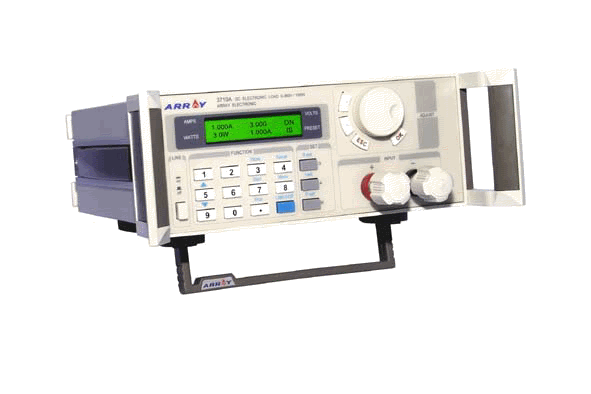

Hochpräzise DC-Last 150 W und 300 W, Typ 37xx



- Trennung durch potenzialfreien Eingang

- Eingang zu- und abschaltbar (ON/OFF - Funktion)

- I- oder R-Kennlinie

- komfortable Bedienung

- LCD-Display

- Schnittstelle





weitere Produkte von

ARRAY ELECTRONIC



- DC Quellen



- DMMs und Zubehör

Produktbroschüre







Introduction:
Array 3700 series electronic load is a single input programmable DC electronic load. It provides a convenient way to test batteries and DC power supplies. It offers constant current mode, constant resistance mode and constant power mode. The backlight LCD, numerical keypad and rotary knob make it much easier to use. Up to 10 steps program can be stored. Controlled by PC is also available. It is an essential instrument for design test and manufacture of many suitable products.
Features:

LCD display with backlight

High resolution measurement

CC/CP/CR mode

Number keypad and rotary knob

Multifunction menu

Over voltage / over current / over power / over temperature / polarity reversion     protection

10 steps program

Can be controlled by PC

Can be connected in parallel


Specifications:

Type

3710A

3711A

Number of inputs

1

1

Input voltage

0 - 360V DC

0 - 360V DC

Input current

0 - 30A DC

0 - 30A DC

Input power

0 - 150W

0 - 300W

Voltage accuracy

0,000 - 3,999V / 0,2%+3mV

0,000 - 3,999V / 0,2%+3mV

4,00 - 35,99V / 0,2%+30mV

4,00 - 35,99V / 0,2%+30mV

36,0 - 360,0V / 0,2%+300mV

36,0 - 360,0V / 0,2%+300mV

Current accuracy

0,000 - 2,999A / 0,2%+3mA

0,000 - 2,999A / 0,2%+3mA

3,00 - 30,00A / 0,2%+30mA

3,00 - 30,00A / 0,2%+30mA

Minimum resolution

Voltage 1mV, Current 1mA

Voltage 1mV, Current 1mA

Lowest Conductive Resistance

<0,08Ω

<0,08Ω

Ripple

<10mVpp

<10mVpp

Interface

RS232 / RS485 / USB*

Protection

Over voltage / over current / over power / over temperature / polarity-reversion

Program Memory

10 steps program, EEPROM

AC Input

110V / 220V AC +/-15%, 47 - 63Hz

Operating environment

0 - 50°C, 80% RH

Software

Electronic load software, ActiveX and DLL tools for VB,

VC++, DELPHI, LABVIEW

Weight

5,0 kg

Dimensions

212,6mm W x 88,1mm H x 250mm D

Standard Accessories

User’s manual, AC cable, handle bars, software CD

Optional Accessories

RS232 adapter, RS485 adapter, USB adapter, Mounting rack

  * Optional adapter required
